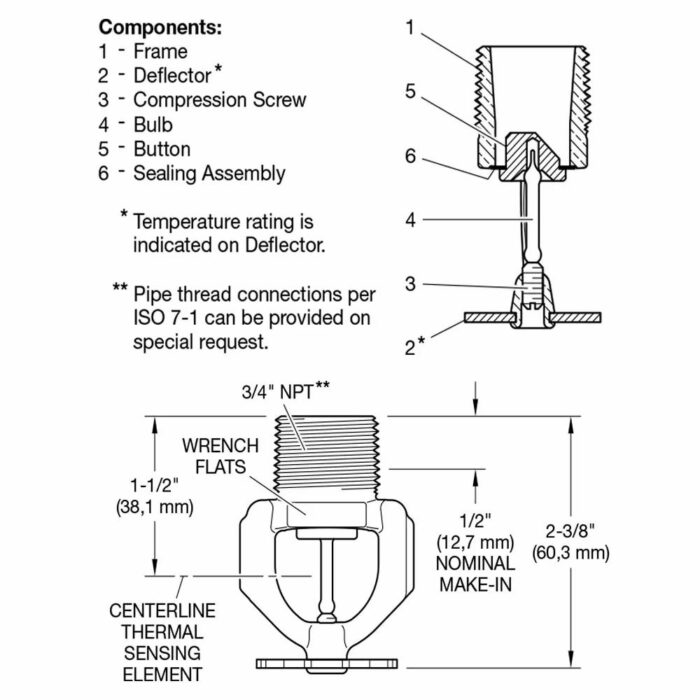

This product is an Early Suppression, Fast Response (ESFR) sprinkler system, specifically the Model ESFR-14 Sprinkler.It is primarily designed for fire protection in high-piled storage facilities. Its key advantage is its ability to eliminate the need for in-rack sprinklers, simplifying the fire suppression system and potentially reducing installation and maintenance costs in such environments.
| Model | TY6236 |
| Material | Brass |
| Type | Pendent |
| K-factor, gpm/psi% (Lpm/bar%) | 14.0 gpm/psi1/2 (201,6 Lpm/bar1/2) |
| Temperature Rating °F (°C) | 155°F(68°C)200°F(93°C) |
| Thread Size | 3/4 in. NPT or ISO 7-1 |
| Sprinkler Orientation | Pendent |
| Maximum Working Pressure, psi (bar) | 175 psi (12 bar) |
From soaring commercial towers and industrial plants to vital municipal projects and residential complexes, our firefighting valves provide unmatched reliability where safety matters most. Designed to perform under pressure, they safeguard lives and assets across diverse environments—ensuring your fire protection system is always ready when it counts.
We deliver reliable firefighting valves with advanced manufacturing, strict testing, and global standards—backed by fast delivery and expert support.
A1: Our products meet ISO, UL, FM, CE and other international certifications to satisfy different market and project requirements.
A2: Yes, we offer customization in size, pressure rating, connection type, and surface treatment to meet specific application needs.
A3: Standard models can usually be shipped within 7–15 days. Bulk or customized orders will require confirmation of the exact lead time.
A4: We implement strict raw material inspection, process control, and final product testing, backed by warranty and after-sales support.
