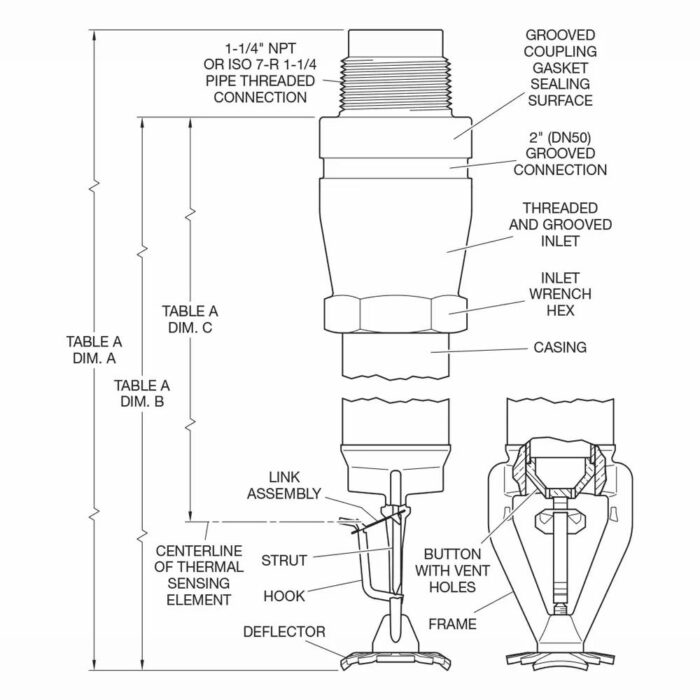

Model ESFR-17 dry pendent sprinklers are Early Suppression Fast Response (ESFR) sprinklers with a nominal K-factor of 16.8.
These sprinklers are suppression type sprinklers and are particularly useful as a replacement for in-rack sprinklers when protecting high stack case-in-case refrigerated storage areas.
| Model | TY7229 |
| Material | Brass,Bronze |
| Maximum Working Pressure | 175 psi (12.1 bar) |
| K-factor, gpm/psi½ (Lpm/bar½ | 16.8 gpm/psi½ (241,9 Lpm/bar½) |
| Temperature Rating °F (°C)1 | 165°F (74°C)
212°F (100°C) |
| Thread Size | 1 1/4 in. NPT or ISO 7-R 1 1/4 |
| Sprinkler Orientation | Pendent |
From soaring commercial towers and industrial plants to vital municipal projects and residential complexes, our firefighting valves provide unmatched reliability where safety matters most. Designed to perform under pressure, they safeguard lives and assets across diverse environments—ensuring your fire protection system is always ready when it counts.
We deliver reliable firefighting valves with advanced manufacturing, strict testing, and global standards—backed by fast delivery and expert support.
A1: Our products meet ISO, UL, FM, CE and other international certifications to satisfy different market and project requirements.
A2: Yes, we offer customization in size, pressure rating, connection type, and surface treatment to meet specific application needs.
A3: Standard models can usually be shipped within 7–15 days. Bulk or customized orders will require confirmation of the exact lead time.
A4: We implement strict raw material inspection, process control, and final product testing, backed by warranty and after-sales support.
