Leyon FM UL Series DS 1 Dry Type Sprinklers 5.6K Horizontal Sidewall Standard and Quick Response Extended Coverage

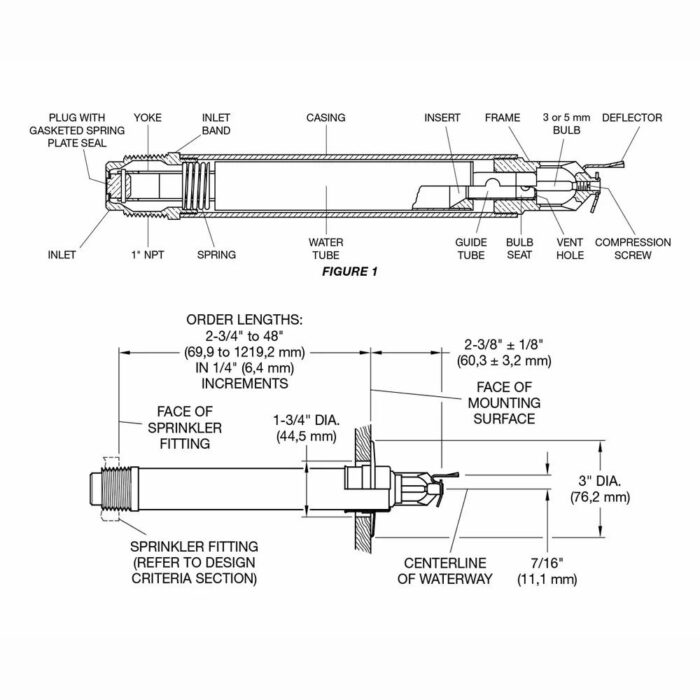

The Tyco DS-1 is a 5.6K dry horizontal sidewall sprinkler (standard or quick response with 5mm/3mm glass bulb) designed for ice prone areas such as unheated building extensions, providing extended coverage for low hazard locations.

Get a quote
Category：

Description

Model TY3358
Material Bronze
Maximum Working Pressure 175 psi (12.1 bar)
Discharge Coefficient K=5.6 gpm/psi½ (80,6 Lpm/bar½)
Temperature Rating °F (°C)1 155°F (68°C)
Thread Size 1 in. NPT or ISO 7-R 1
Sprinkler Orientation Pendent

Application Areas

From soaring commercial towers and industrial plants to vital municipal projects and residential complexes, our firefighting valves provide unmatched reliability where safety matters most. Designed to perform under pressure, they safeguard lives and assets across diverse environments—ensuring your fire protection system is always ready when it counts.

offshore-and-subsea-components-banner
Industrial-and-Systems-Engineering-Banner-1080x550
sprinkler-system-1
Screen-Shot-2024-10-02-at-7.07.24-AM

Why Choose Our Leyon

Engineered for Critical Environments

We deliver reliable firefighting valves with advanced manufacturing, strict testing, and global standards—backed by fast delivery and expert support.

  • Reliable Quality: High-strength materials and precision processes for durability and leak-free performance.
  • Strict Testing: Hydrostatic, air-tightness, and functional tests to meet global fire safety standards.
  • Wide Range: Gate, butterfly, check, hydrant valves, and more for diverse projects.
  • Fast Delivery: Strong production and supply chain ensure on-time delivery.
  • Expert Support: Skilled teams provide guidance from selection to after-sales.

Why Choose Our firdip

A1: Our products meet ISO, UL, FM, CE and other international certifications to satisfy different market and project requirements.

A2: Yes, we offer customization in size, pressure rating, connection type, and surface treatment to meet specific application needs.

A3: Standard models can usually be shipped within 7–15 days. Bulk or customized orders will require confirmation of the exact lead time.

A4: We implement strict raw material inspection, process control, and final product testing, backed by warranty and after-sales support.
